Ancor

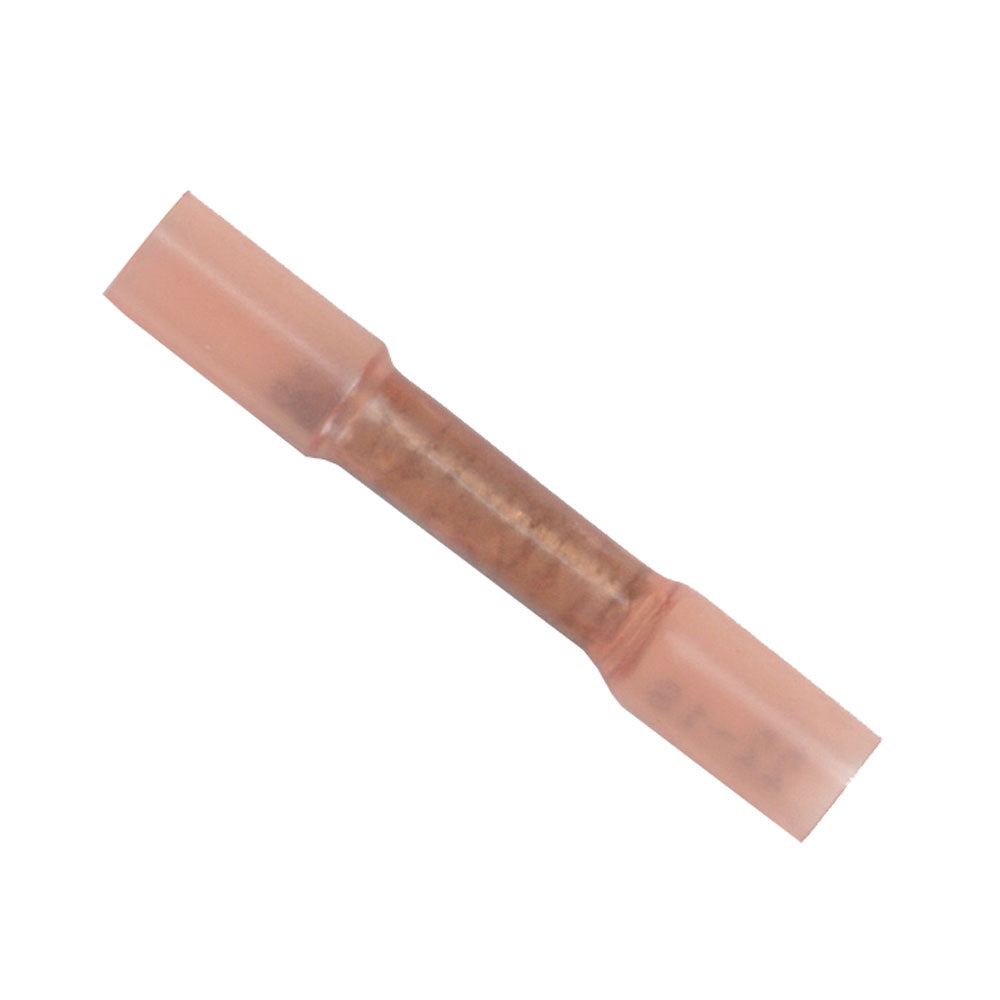

Ancor 22-18 Heatshrink Butt Connectors - 500-Pack
SKU 55424·Terminals
$273.99
22-18 Heatshrink Butt Connetors - 500-PackGuage Size: 22-18Quantity: 500Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat activated adhesive lining ...
1
In stock
·Ships from US distribution
Authorized dealerGenuine Ancor
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger
Will it fit your boat?
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →22-18 Heatshrink Butt Connetors - 500-Pack
Guage Size: 22-18
Quantity: 500
Product Features:
Guage Size: 22-18
Quantity: 500
Product Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
- Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
- Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
- UL Listed and CSA Recognized
- Highest shrink ratio - shrinks to 1/3 original size.
- Shrinks at 257 deg. F/125 deg. C.
- Operating temperature range 40 deg. C to 110 deg. C.
- ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Tinned for corrosion resistance.
- Pure copper for maximum current flow.
- Brazed seam for maximum strength.
- Wire range: 22-18
- mm: 0.3 - 0.8
⚠ California Prop 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. See P65Warnings.ca.gov.
BrandAncor
SKU55424
UPC091887308235
TypeTerminals
Weight1.4 lb
