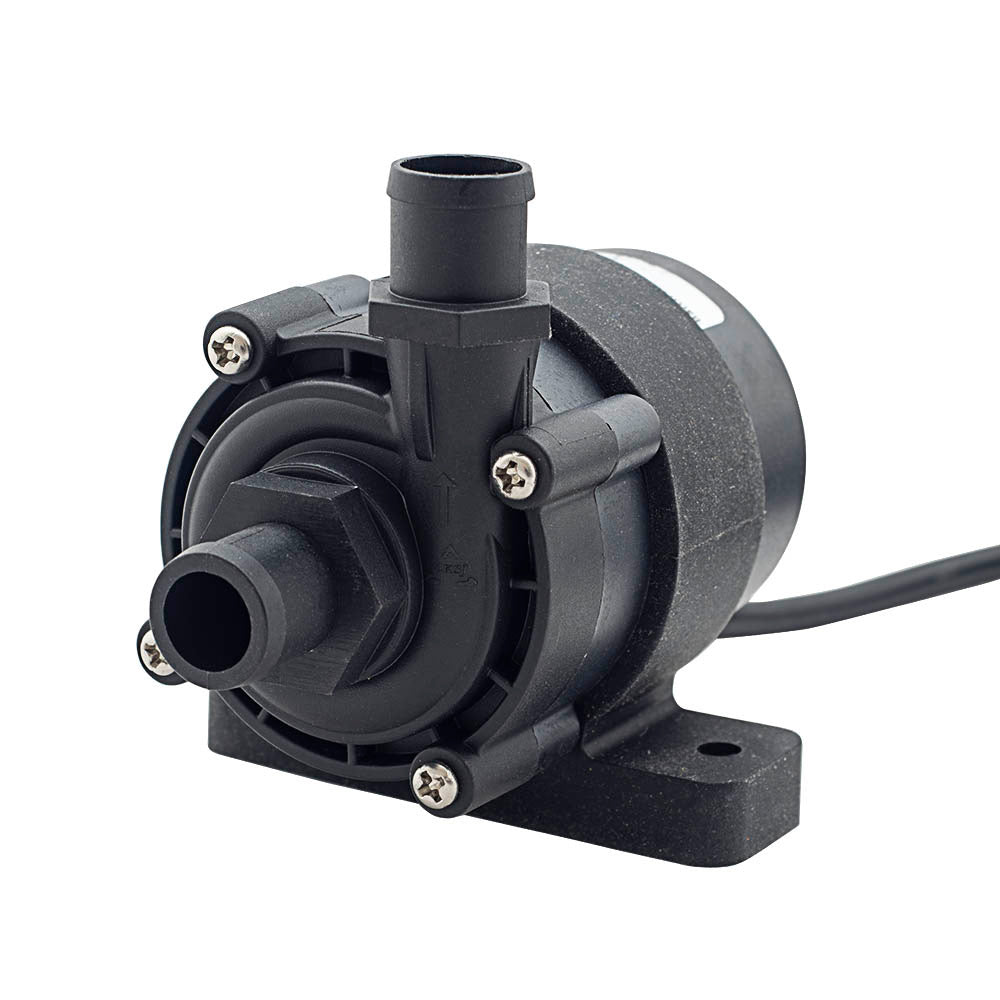

Albin Group DC Driven Circulation Pump with Brushless Motor - BL10CM
DC Driven Circulation Pump with Brushless Motor - BL10CM 12VThis circulation pump is for the circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes, and commercial vehicles. There a...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →DC Driven Circulation Pump with Brushless Motor - BL10CM 12V
This circulation pump is for the circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes, and commercial vehicles. There are many advantages to this pump, such as its small size with high efficiency, maintenance-free, ceramic shaft, carbon fiber sleeve, completely waterproof (IP68), brushless DC control, and long service life.
Features:
- Motor brush-less magnetic isolated design
- For continuous duty
- Life span: 20,000 hours
- Materials of pump housing: ABS, PES/SPS7PA66
- Motor IP classification: IP 68
- Noise class: 35dB
- The max liquid temperature for continuous Duty is 80°C & Intermittent is 100°C
Specifications:
- Port size: (inch) 5/8" / (mm) 14
- Weight: 0.2 kg
- Capacity at 0.1 bar: 19 l/min
- Capacity at 0.25 bar: 16 l/min
- Max load: 2 A
- Max power consumption: 80 W
*Includes pump and motor
