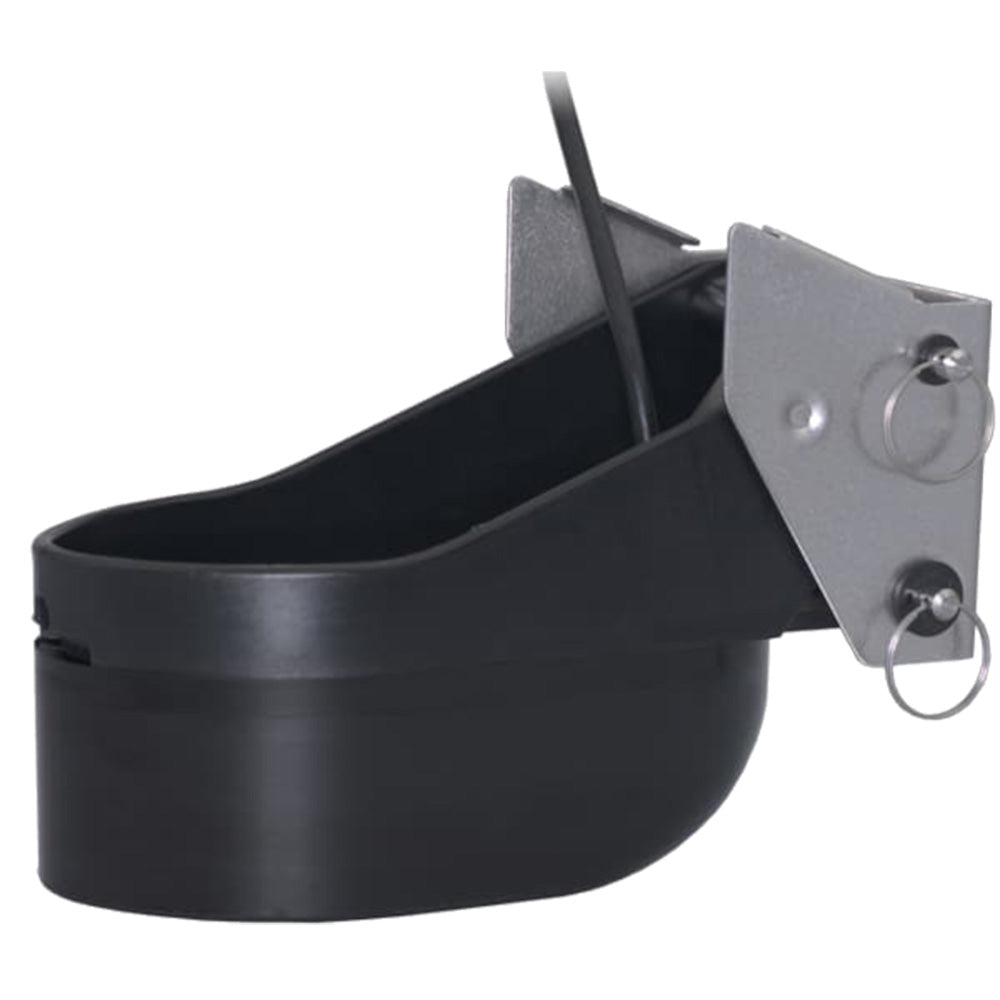

Airmar TM260-9N Transom Mount Transducer 1kW 50/200kHz 9-Pin f/Navico
TM260-9N Transom Mount Transducer 1kW 50/200kHz 9-Pin for NavicoTM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line 1kW transom-mount brings crystal clear imaging to any of...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →TM260-9N Transom Mount Transducer 1kW 50/200kHz 9-Pin for Navico
TM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line 1kW transom-mount brings crystal clear imaging to any of today’s fishfinders. The large 200 kHz element and the seven-element 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s high-performance mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).
Fishing Applications:
- Blue-water trolling using 50 kHz
- Deep-water bottom and wreck fishing up to 800 m (2,625’)
Features:
- Top-of-the-line narrow-beam transom-mount
- Designed for bottom fishing
- Wide 19° beam at 50 kHz
- Narrow 6° beam at 200 kHz
- Interfaces to any 600 W or 1 kW sounder
- The depth and fast-response water-temperature sensor
- Kick-up assembly locks in the “up” position and will not damage the transom
- Accommodates transom angles between 3° and 21°
- Urethane housing
- Boat Size: Up to 12 m (40’)
Good to know
- Genuine Airmar product from an authorized dealer.
- Ships from US distribution.
- Questions about fit or installation? Contact us before you order.
What's in the box
