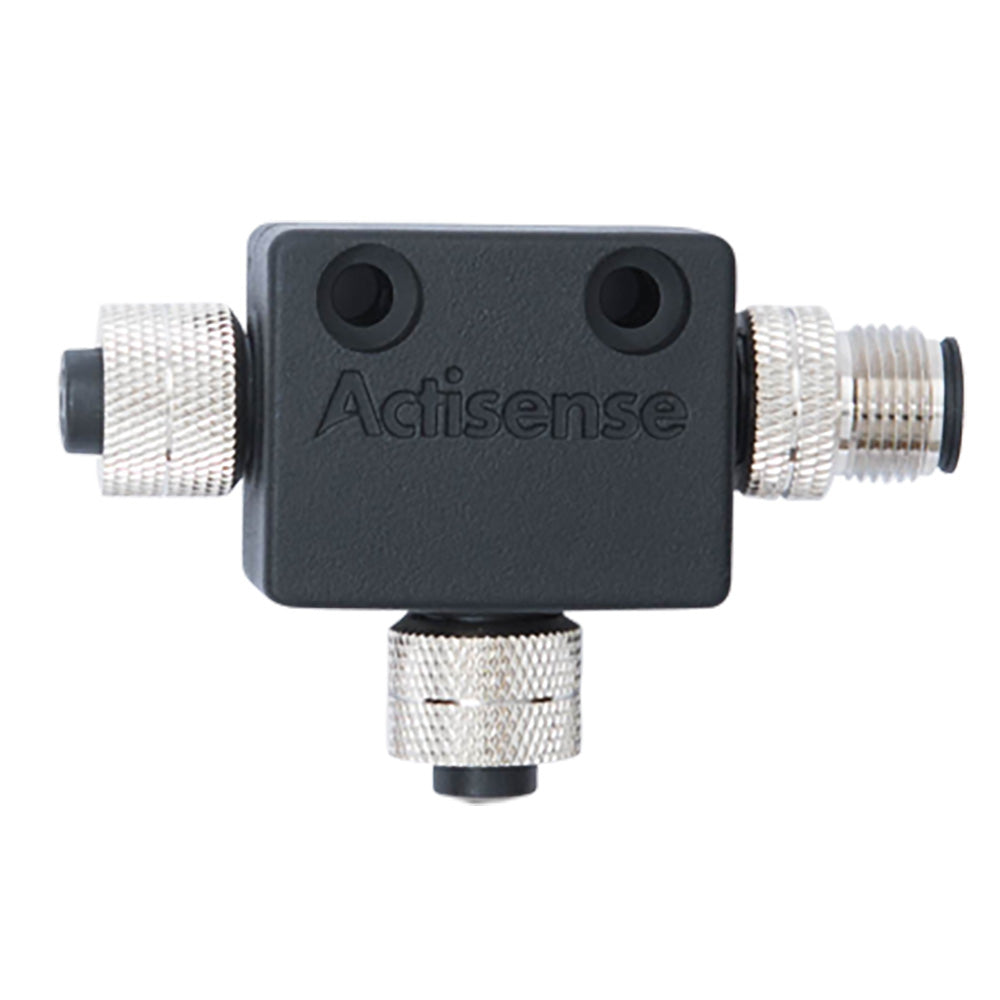

Actisense NMEA2000 Micro T Connector
NMEA2000 Micro T ConnectorQuality-engineered connectors are shaped to allow easy and secure connections.Two female and one male connector allow easy connection to Actisense NMEA lite cable assemblies, even when field-...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →NMEA2000 Micro T Connector
Quality-engineered connectors are shaped to allow easy and secure connections.
Two female and one male connector allow easy connection to Actisense NMEA lite cable assemblies, even when field-fit connectors are used, making it a unique T-piece.
The Actisense NMEA 2000 T-Piece is for use where a drop or ‘port’ is required from the NMEA 2000 backbone to connect another device.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Technical Specifications:
- Rated Current - 4A
- Rated Voltage - 60VDC
- Male Contact - Brass, gold-plated
- Female Contact - Phosphor bronze, gold plated
- Contact Carrier - PA66 (30% Glass filled), black
- Contact Polarization - Standard M12 -“A”- polarization
- Mating Thread - M12
- Screw Cap - Brass, nickel plated
- O-Ring Seal - Rubber, black
- Housing - PVC, black
- Weight - 47g
- Protection - IP67 (when mated)
- Operating Temperature - -25°C to +70°C
- Storage Temperature - -40°C to +85°C
Good to know
- Genuine Actisense product from an authorized dealer.
- Ships from US distribution.
- Questions about fit or installation? Contact us before you order.
What's in the box
