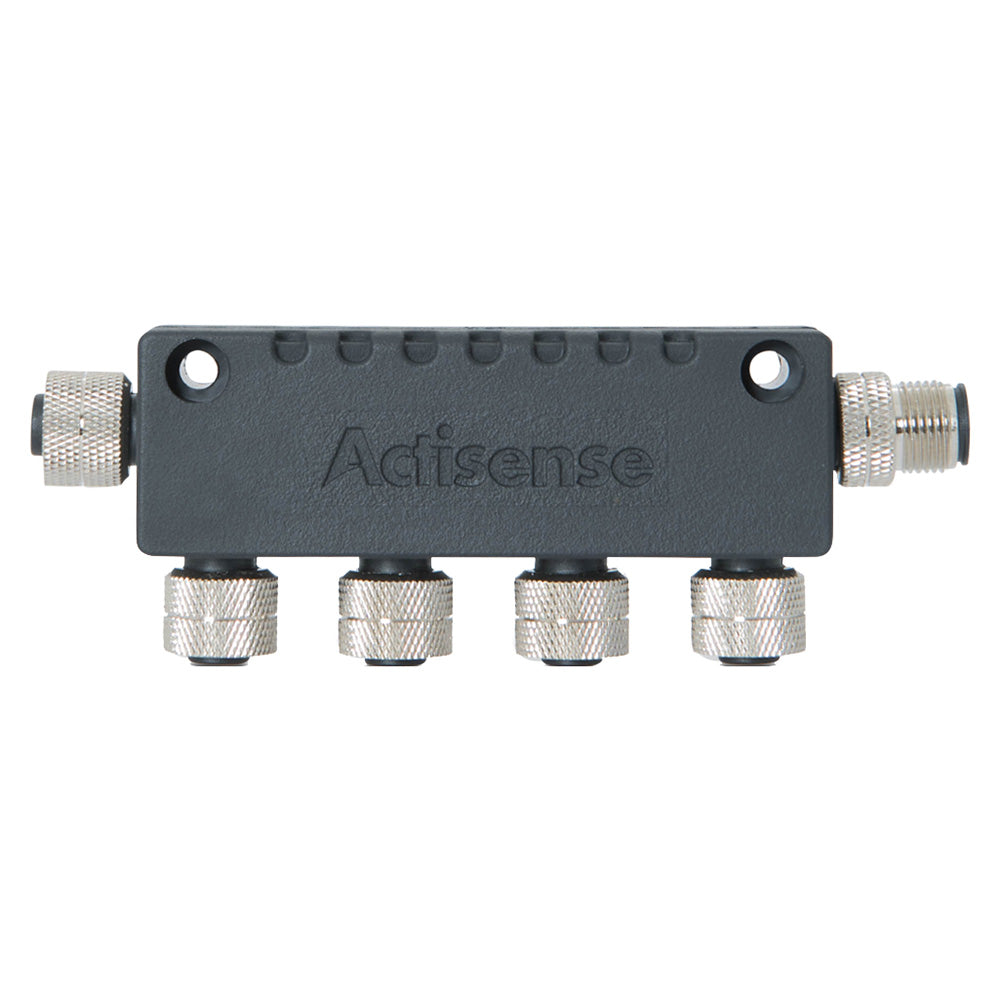

Actisense N2K Micro 4 Way T-Piece
N2K Micro 4 Way T-PieceThe 4 Way T-Piece from Actisense saves you time, space and money on your NMEA 2000® installation.The Actisense 4 Way T-Piece is for use where multiple drops or ‘ports’ are required from the NMEA...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →N2K Micro 4 Way T-Piece
The 4 Way T-Piece from Actisense saves you time, space and money on your NMEA 2000® installation.
The Actisense 4 Way T-Piece is for use where multiple drops or ‘ports’ are required from the NMEA 2000 backbone. It’s as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces and costs less than four.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Features:
- NMEA 2000 Approved
- RoHS Compliant
Technical Specifications:
Electrical
- Rated Current - 4A
- Rated Voltage - 60V DC
Mechanical
- Male Contact - Brass, gold plated
- Female Contact - Phosphor bronze, gold plated
- Contact Carrier - PA66 (30% Glass filled), black
- Contact Polarization - Standard M12 -“A”- polarization
- Mating Thread - M12
- Screw Cap - Brass, nickel plated
- O-Ring Seal - Rubber, Black
- Housing - TPU, flame retardant to UL94V-0, Halogen Free
- Internal Housing Shield - Copper Foil
- Weight - 105g
Approvals and Certifications
- Protection - IP67 (when mated)
- Operating Temperature - -20°C to +70°C
- Storage Temperature - -40°C to +85°C
